3 Methods of Auto Tuning-MOZA AirCross





Method 1



Turn on the MOZA gimbal

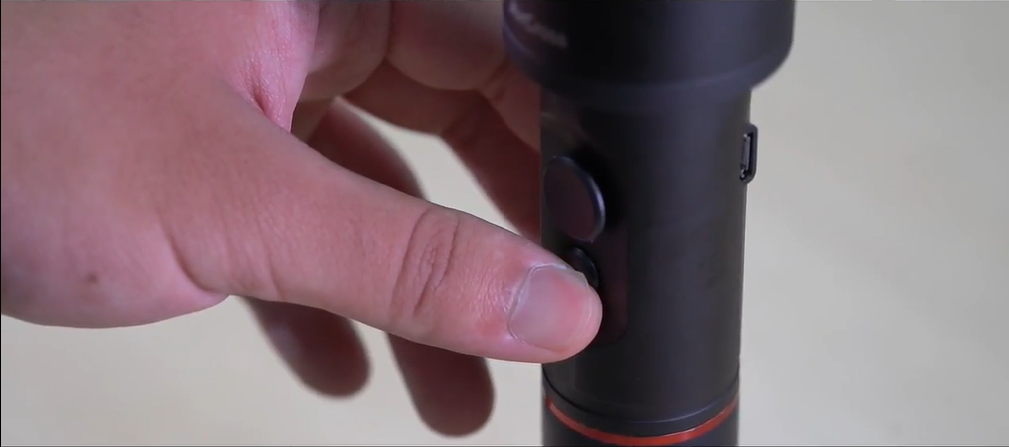

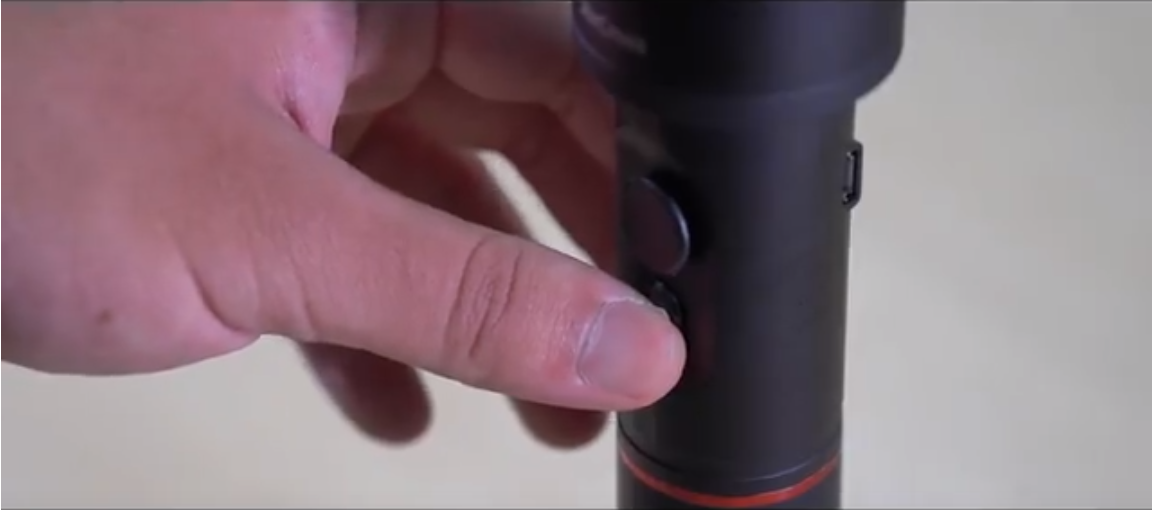

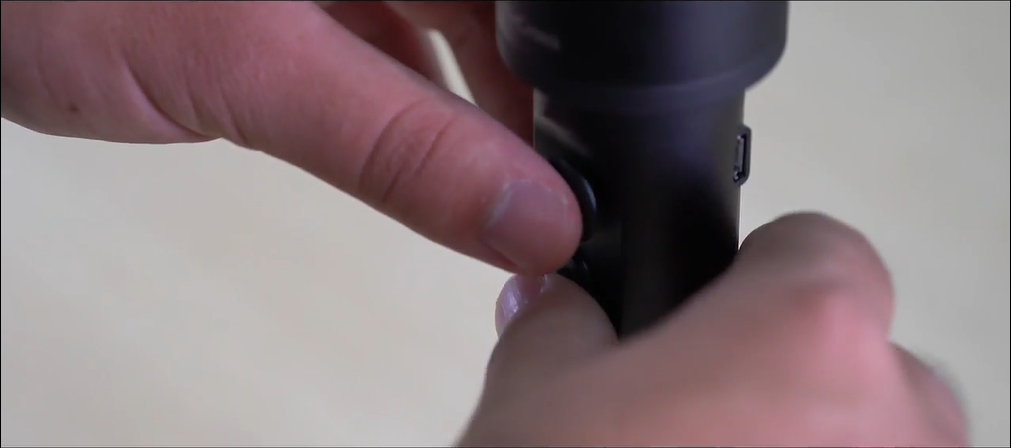

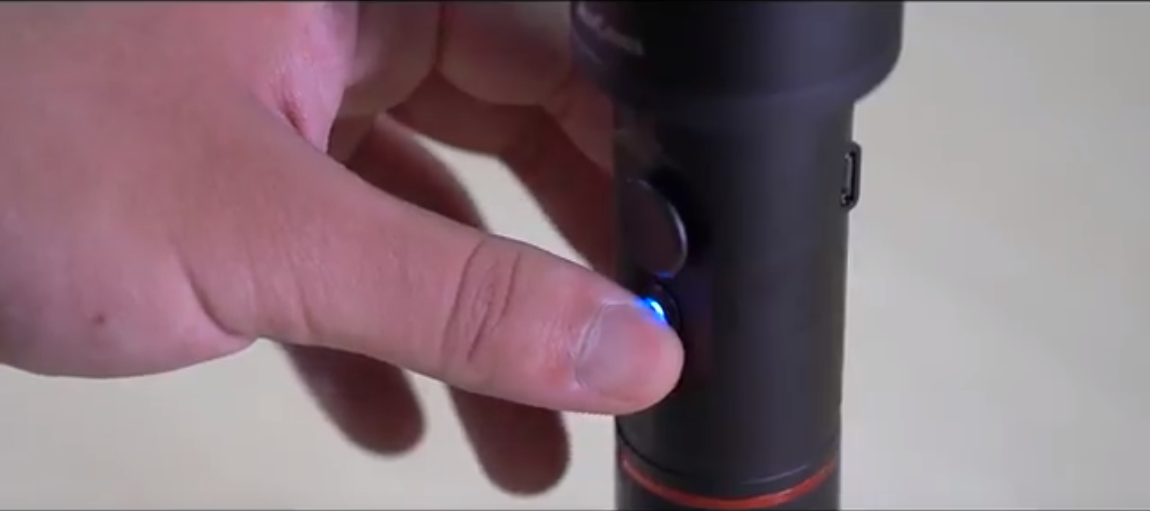

Long press the joystick and click the power button twice at the same time





Then the gimbal enters the auto tuning mode



Please do not touch the gimbal during the process





Method 2



Turn on the gimbal

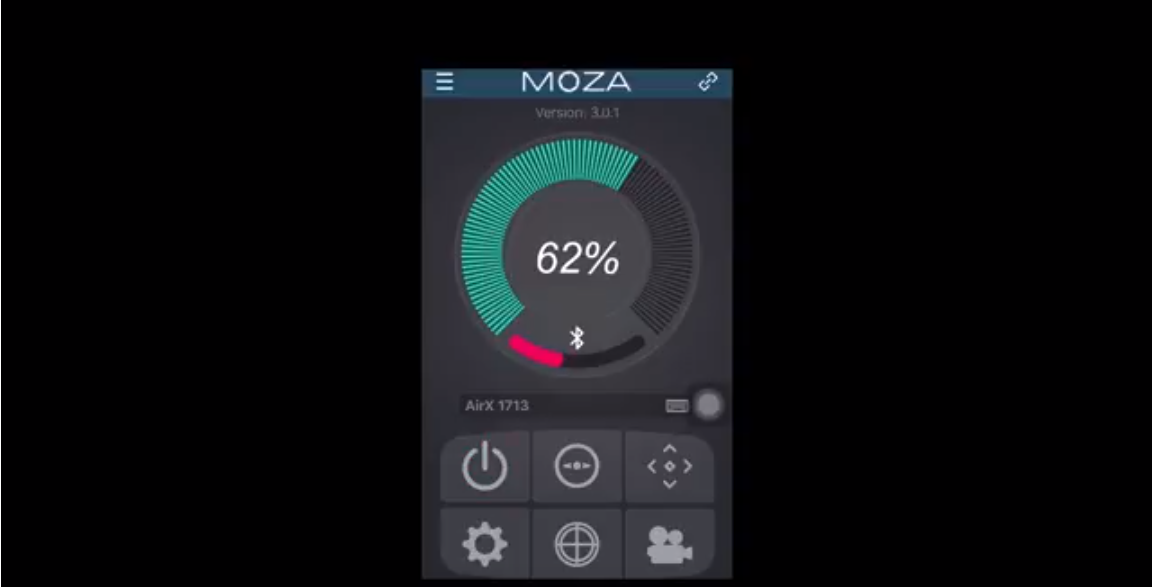

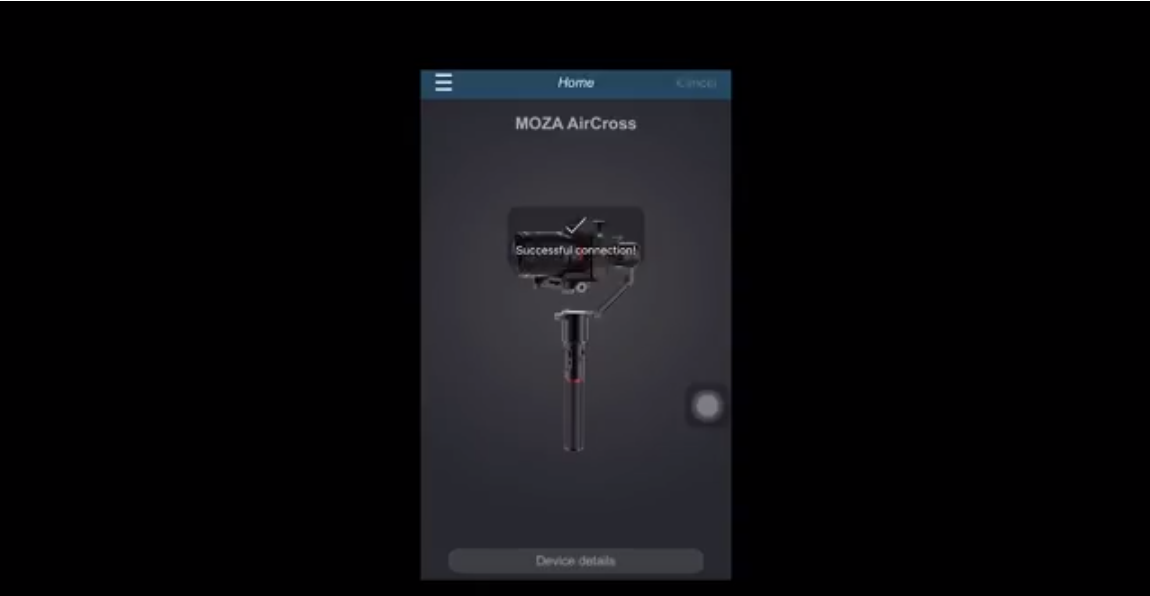

Open the MOZA assistant app

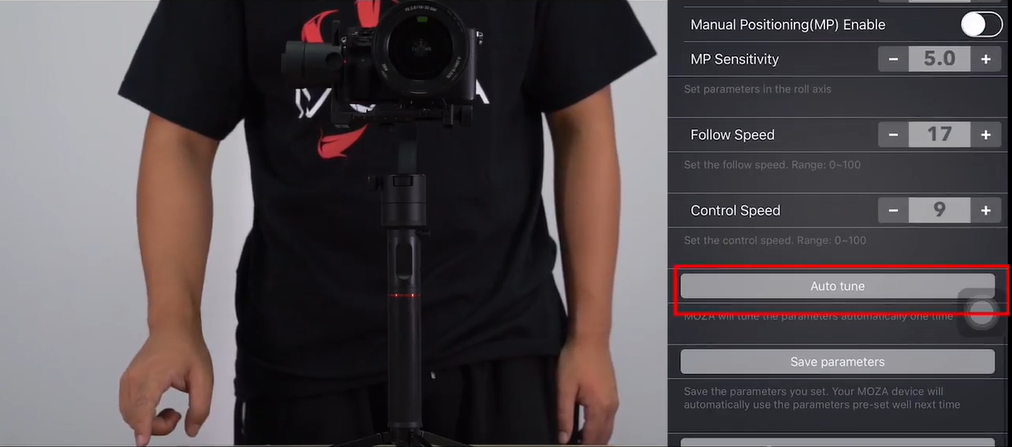

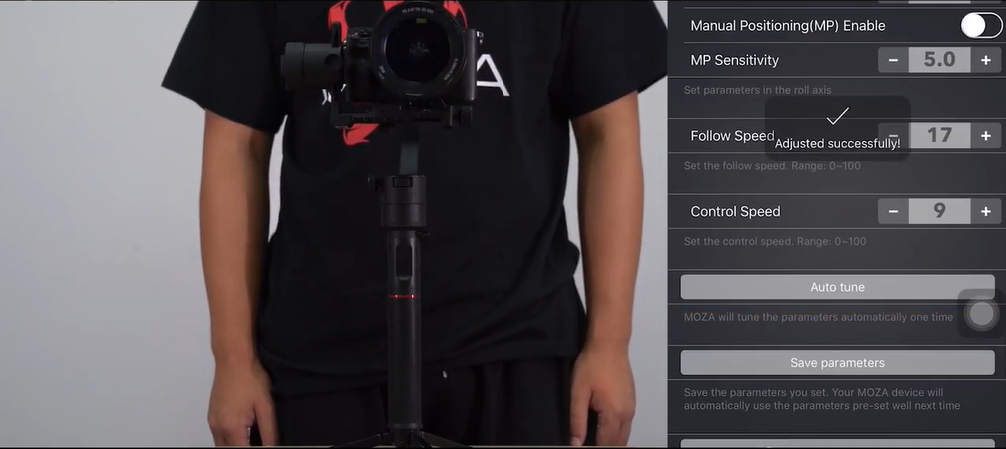

Open the parameter settings interface and click Auto Tune





Then the gimbal goes to auto tuning mode



Method 3

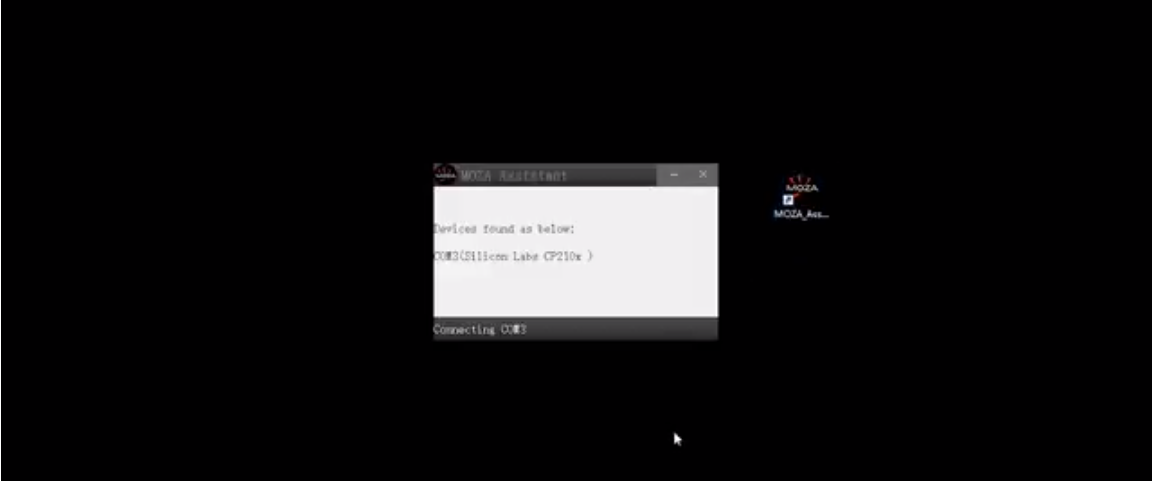

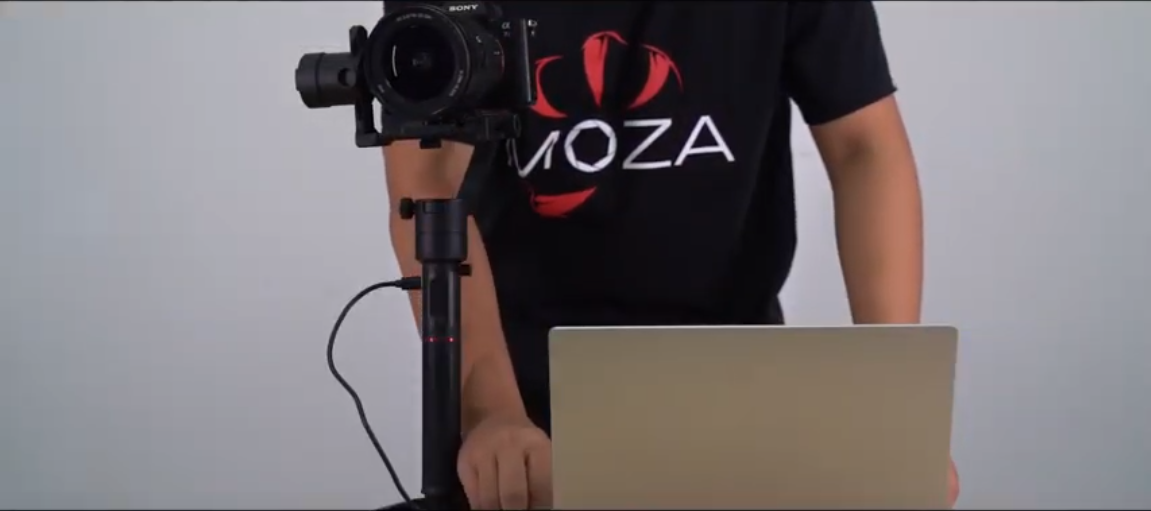

Turn on the gimbal and connect it to the computer

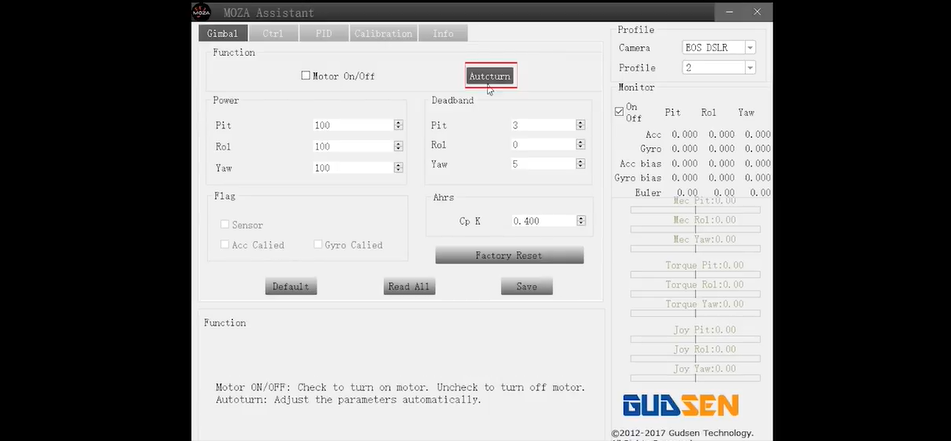

Open the MOZA assistant software and click Auto Tune





Click read all and save

tutorial

Calibration tutorial





In general, calibration is unnecessary unless there is spin, swing, drift or shake with the gimbal

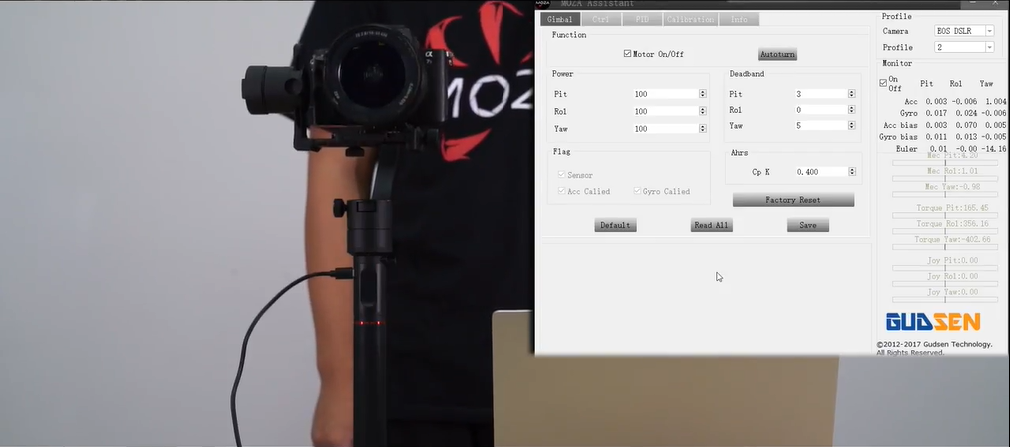

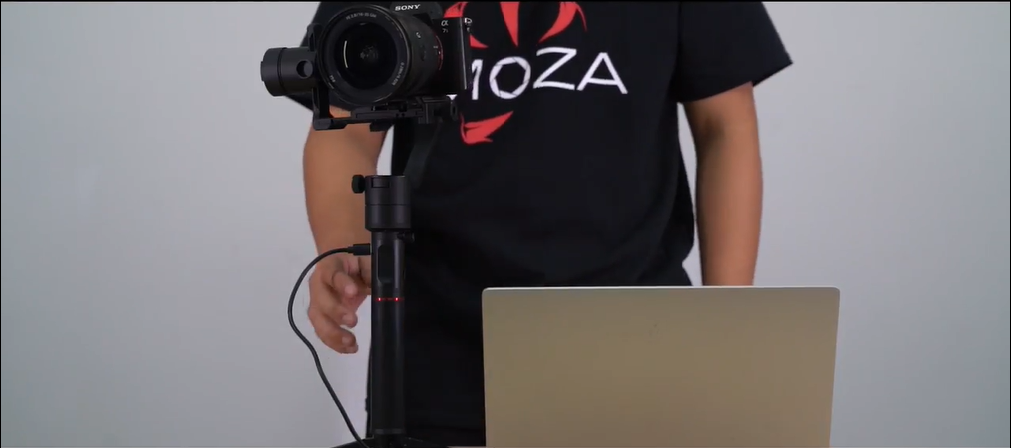

Turn on the gimbal and connect it to the computer





Then open the MOZA Assistant Software

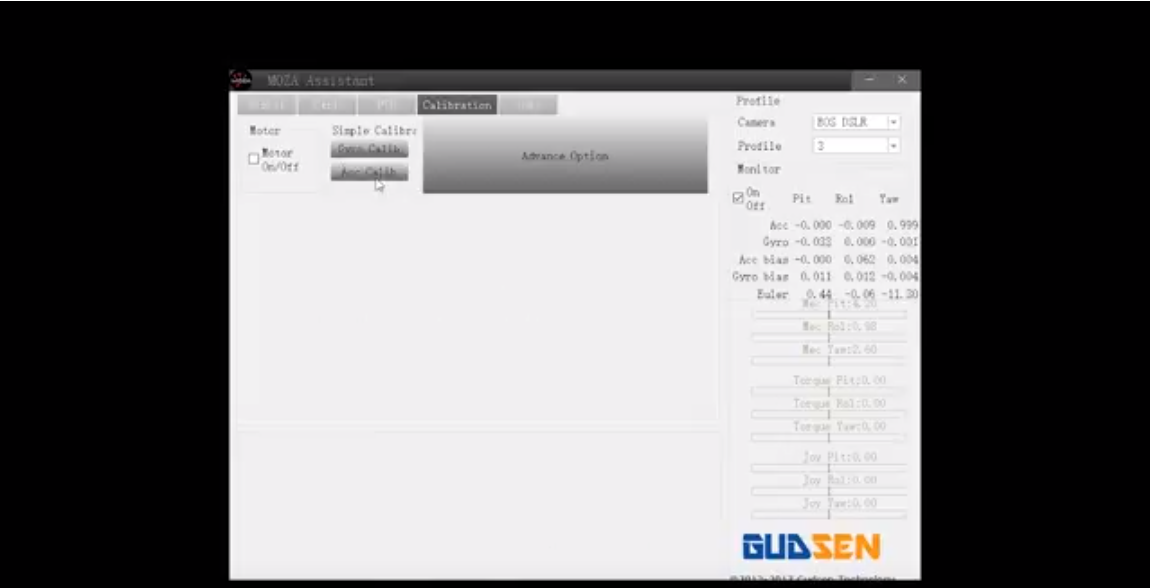

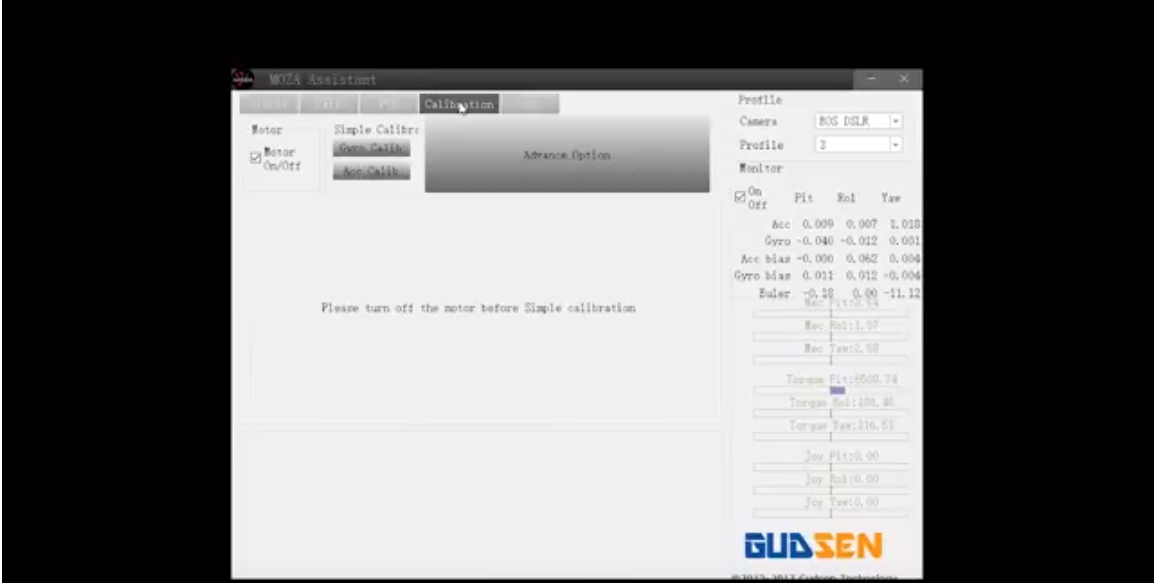

Click calibration





Then uncheck motor on/off to turn off the motor





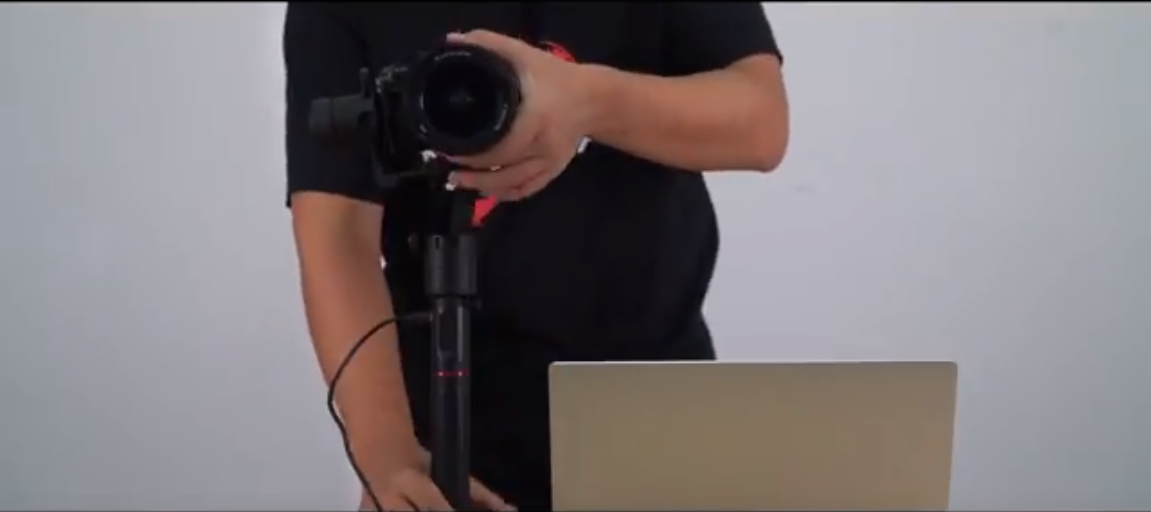

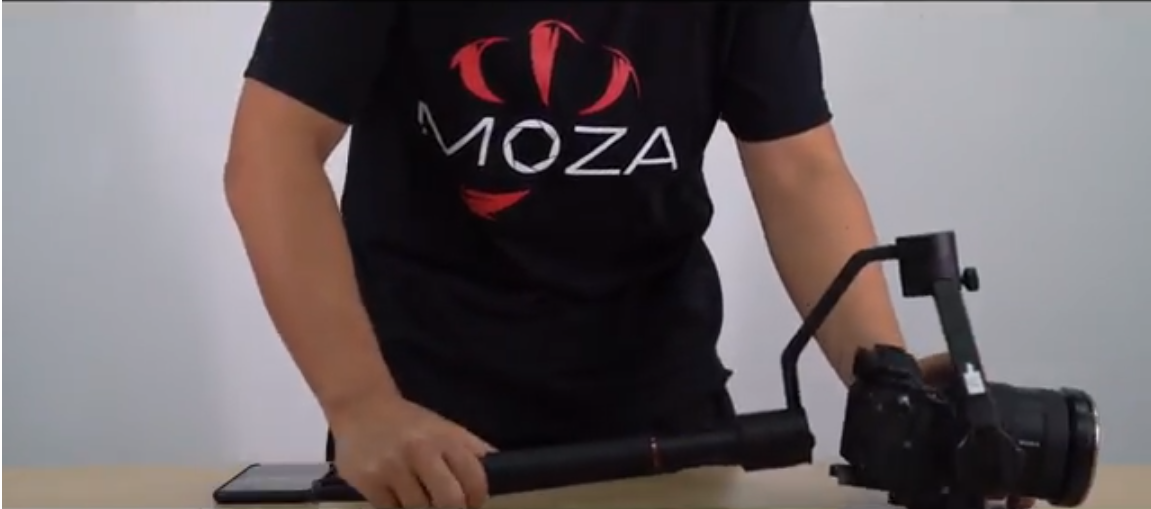

Place the gimbal on the desk horizontally to make the quick release part level

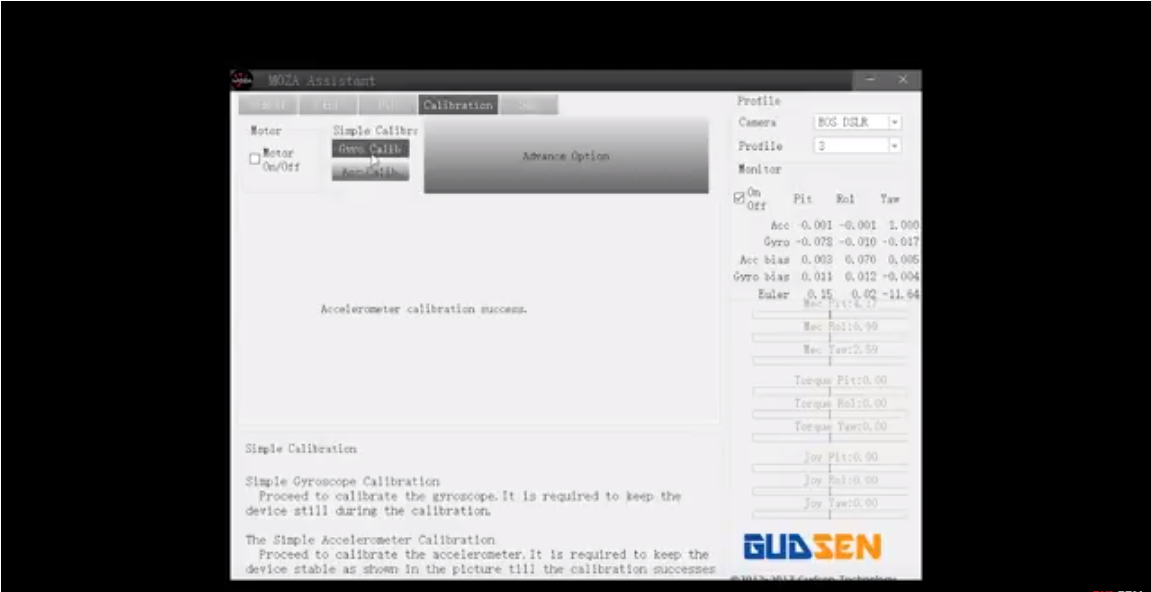

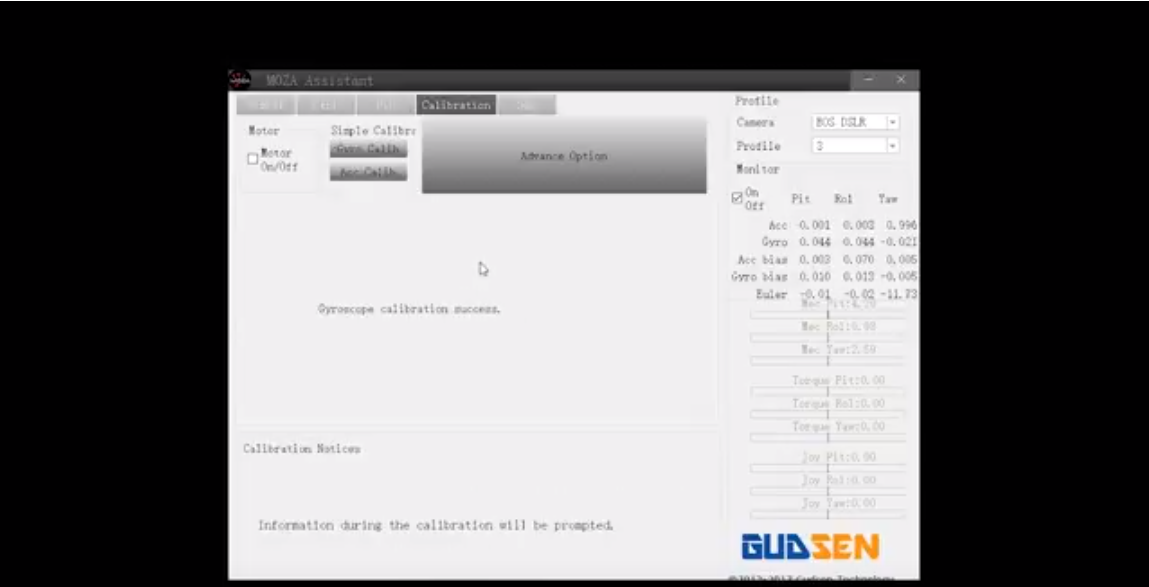

Click to calibrate the accelerometer





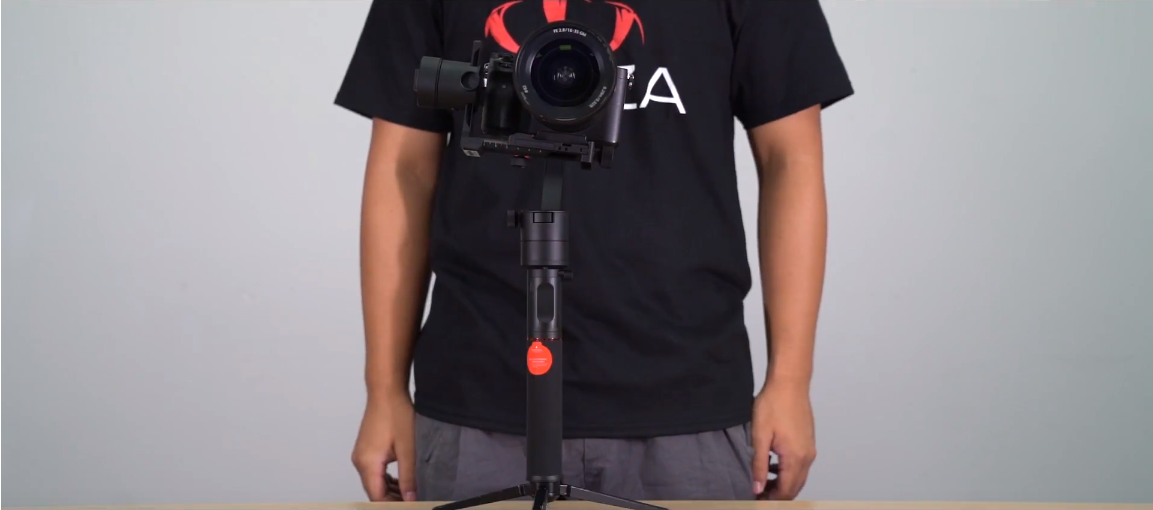

After accelerometer calibration is done, directly stand the gimbal on the desk





Click to calibrate the gyroscope





Now all calibration is done


Calibration on app

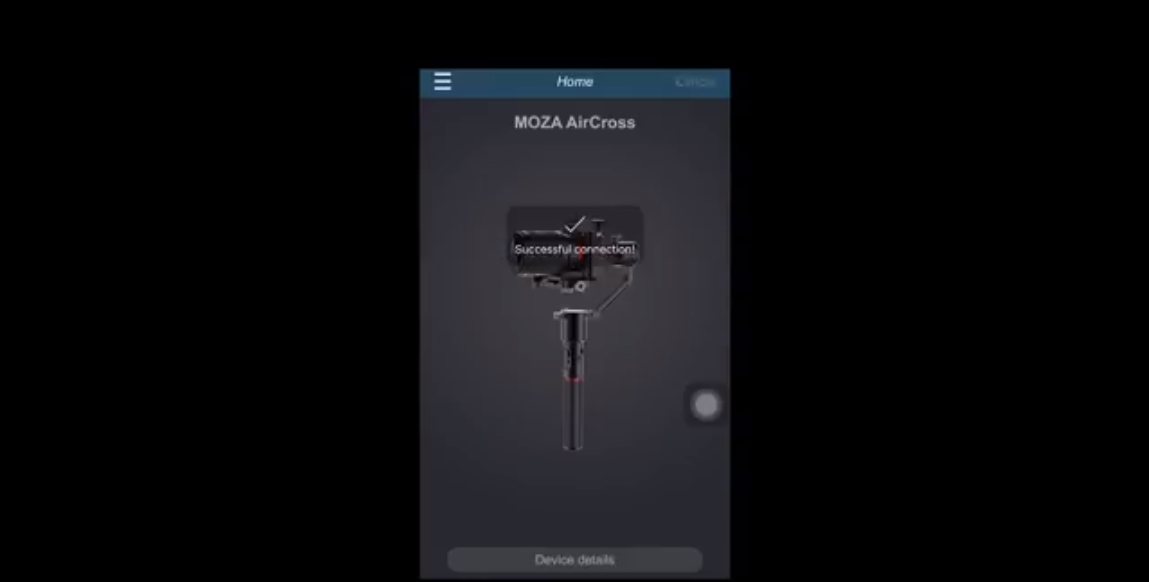

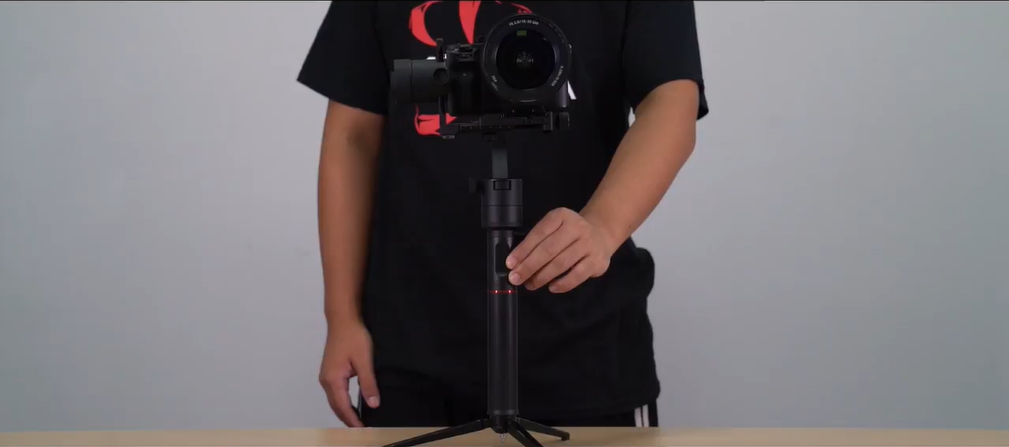

Turn on the gimbal

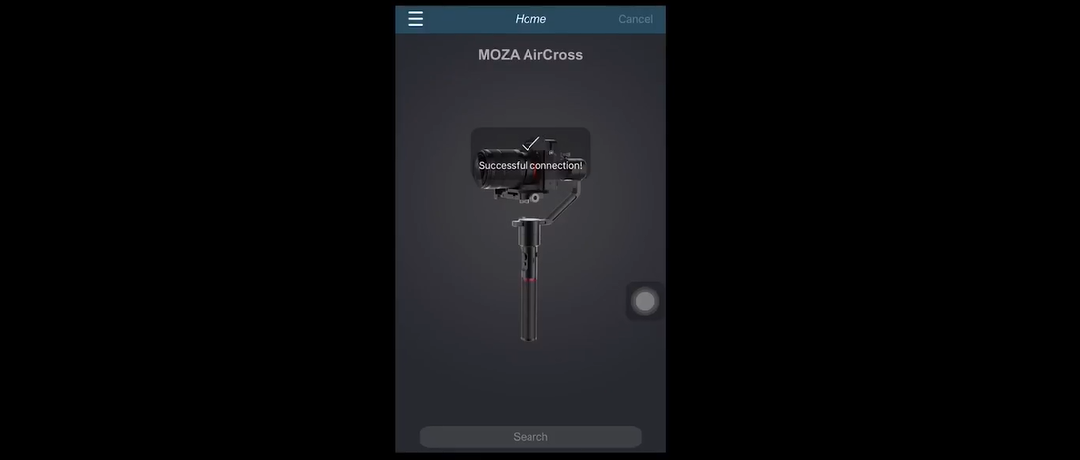

Then connect it to the MOZA assistant app





Turn off the motor

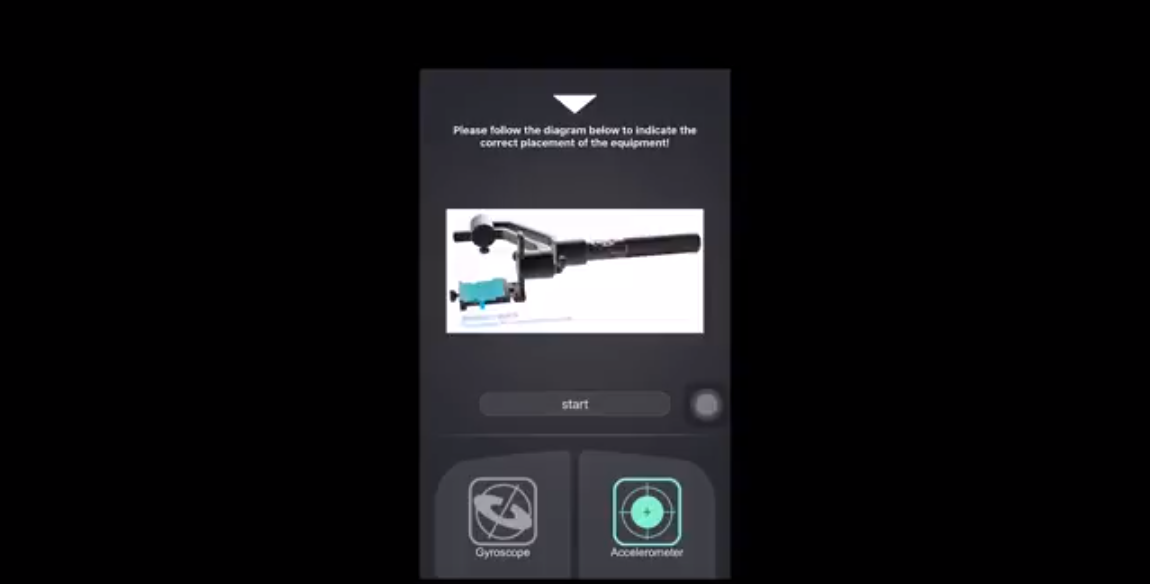

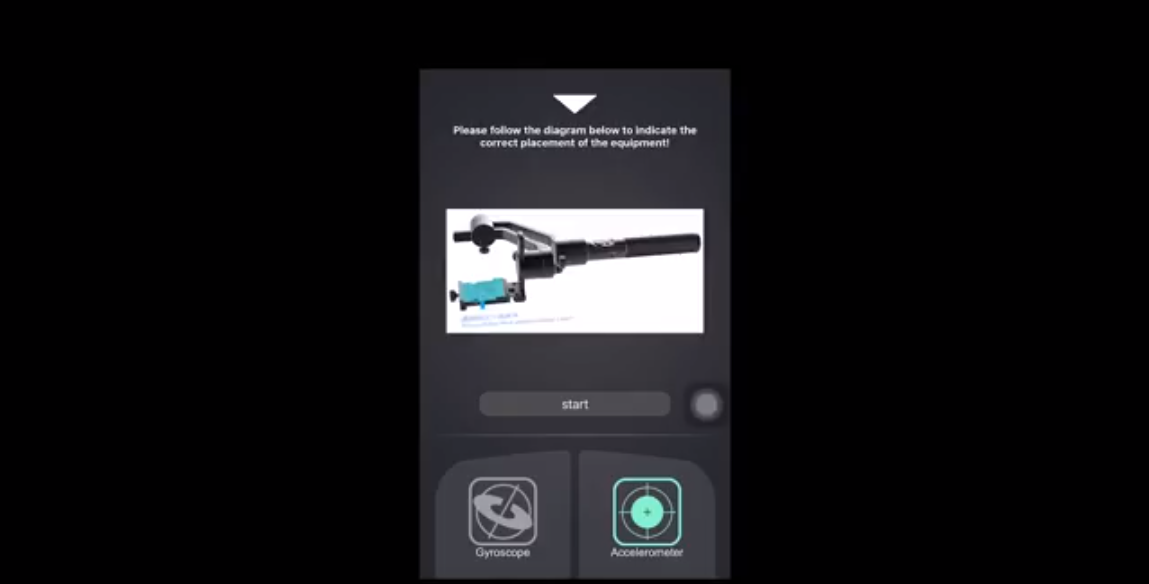

Then open the calibration interface select accelerometer calibration





Place the gimbal on the desk horizontally to keep the quick release part level





Click to start the accelerometer calibration





Turn on the gimbal





Then connect it to the MOZA assistant app



Turn off the motor
Then open the calibration interface select Gyroscope calibration

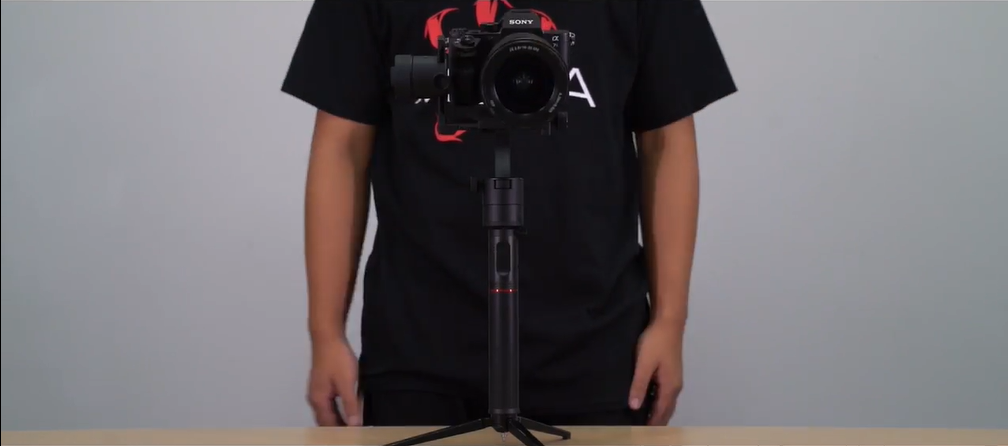

Stand the gimbal on the desk
Click to start the gyroscope calibration





Tutorial

Official Balance Tutorial



Balance tutorial

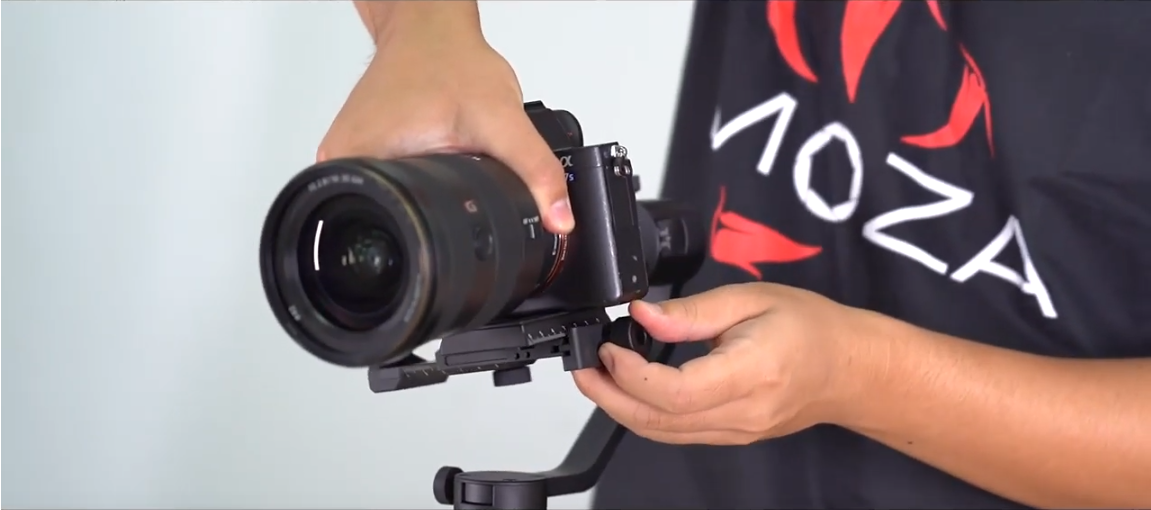

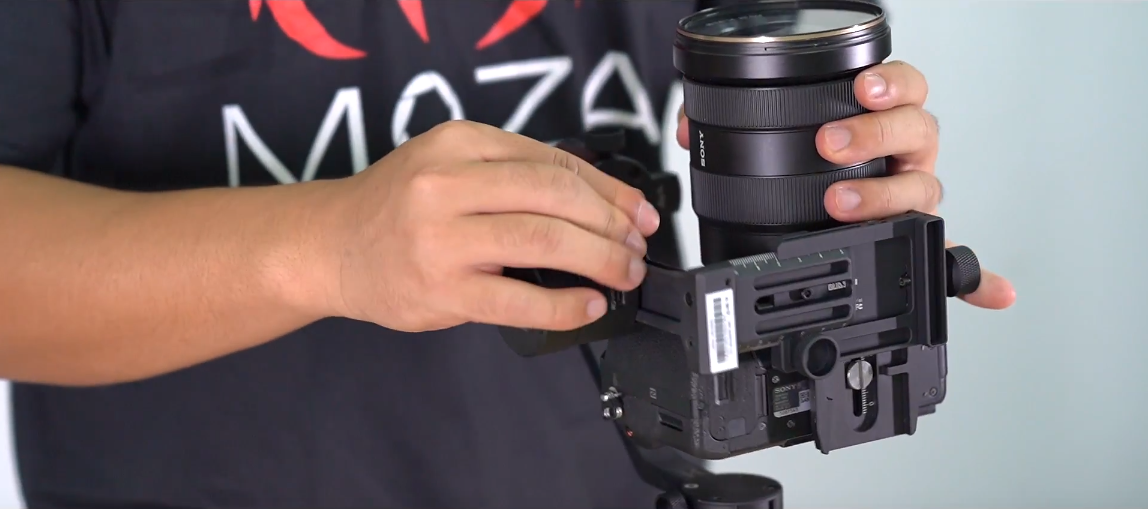

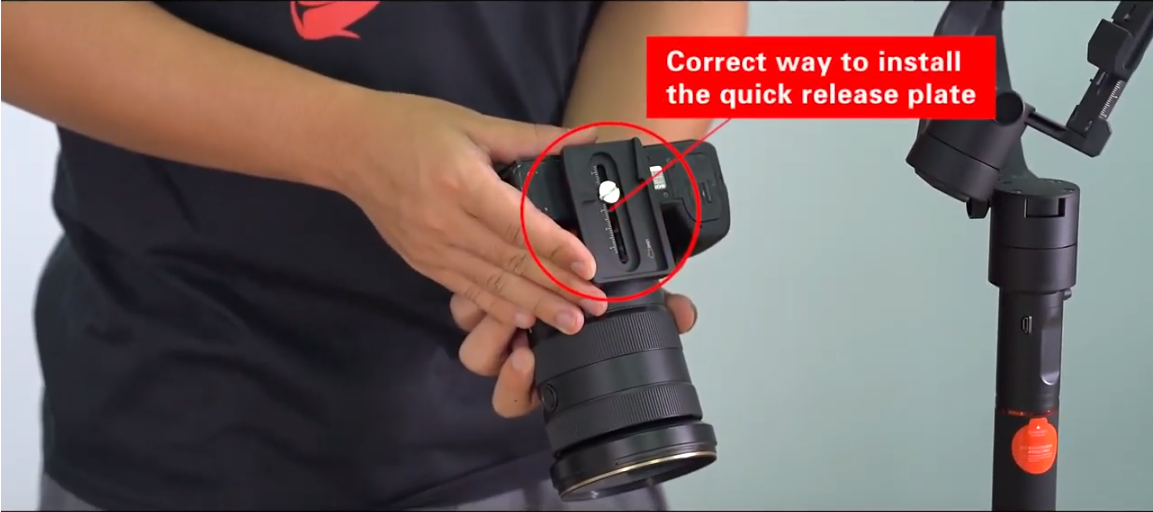

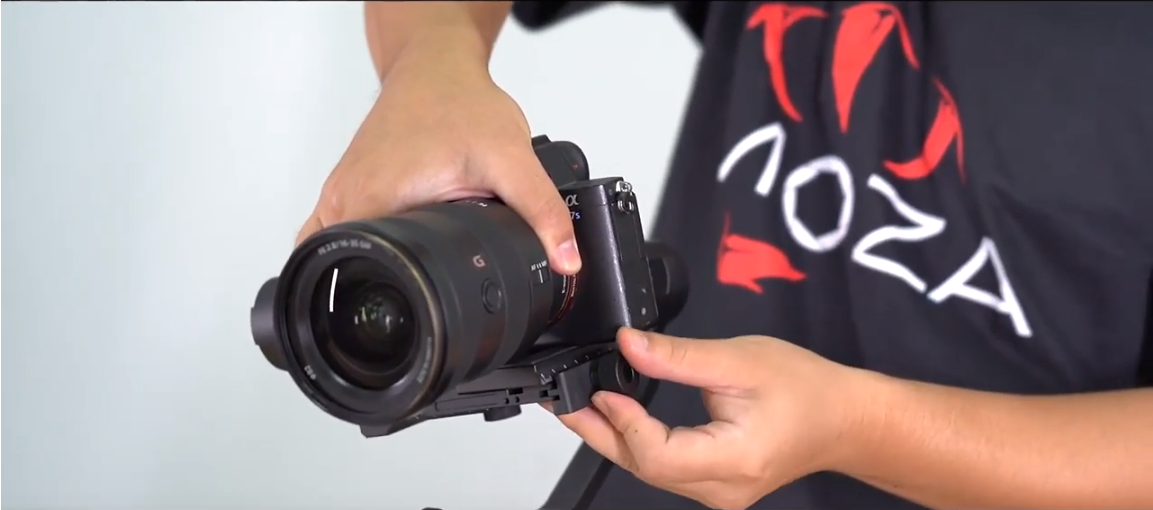

Mount the quick release plate on the camera

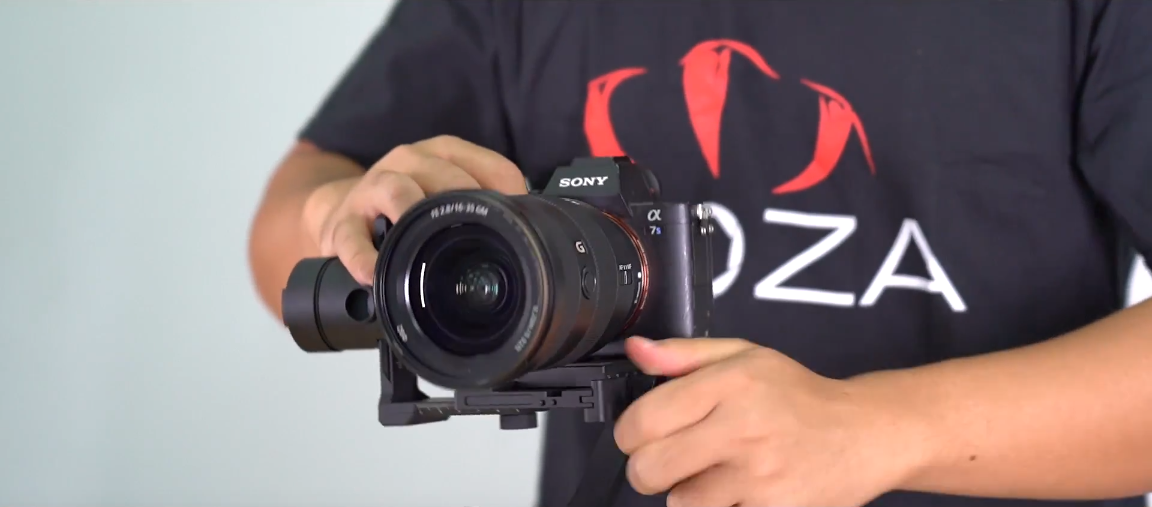

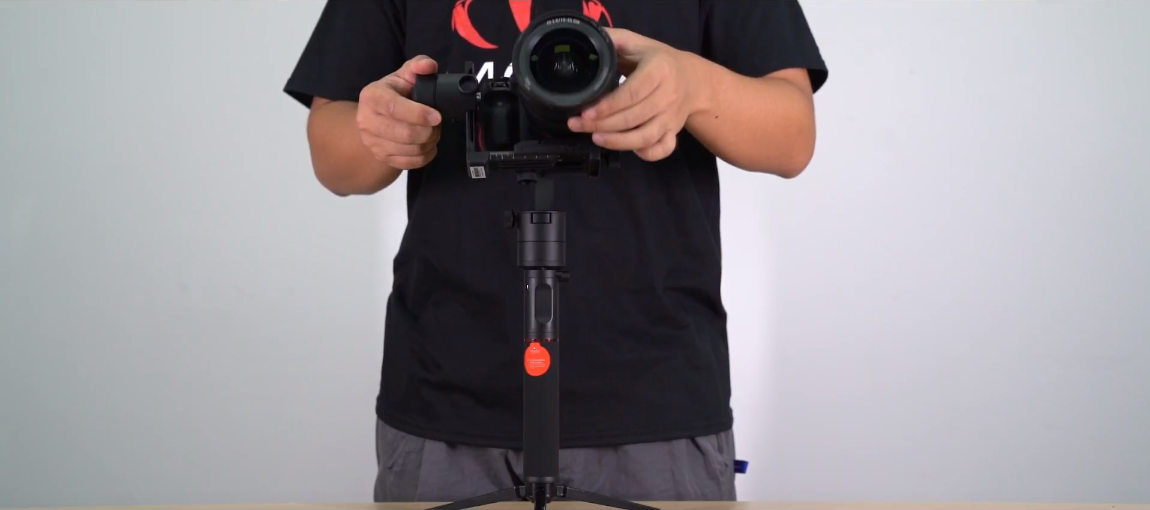

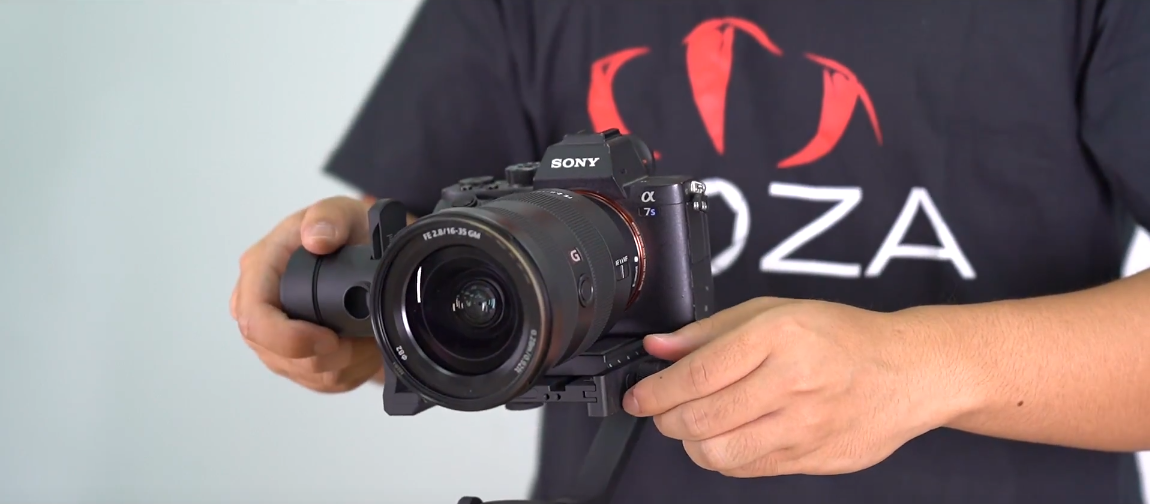

Then mount the camera onto the gimbal and make sure the user faces the roll motor





Make the screw on the roll motor upward and the pitch motor rightward





The MOZA logo on the pitch motor should be upright

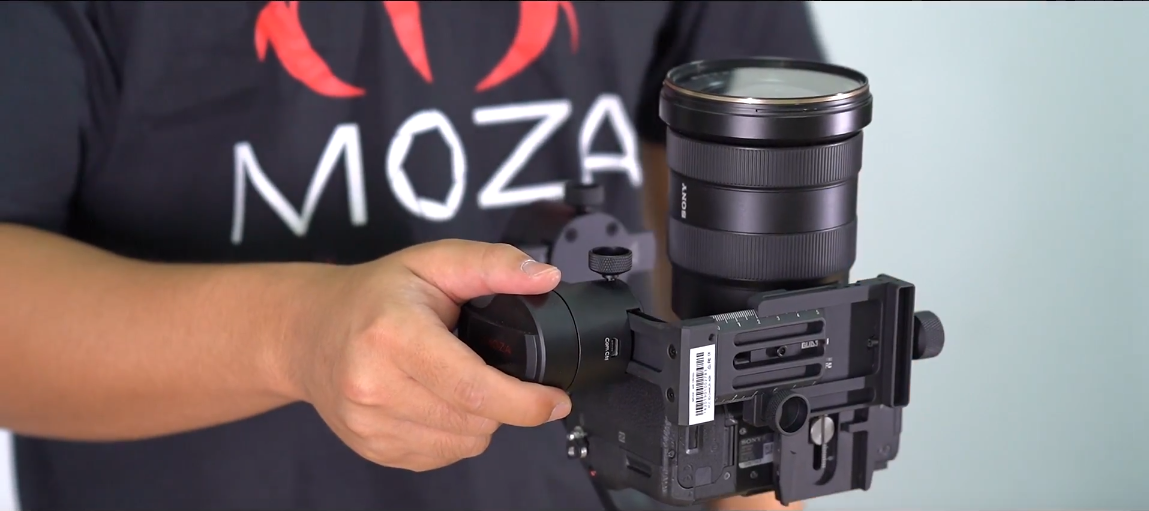

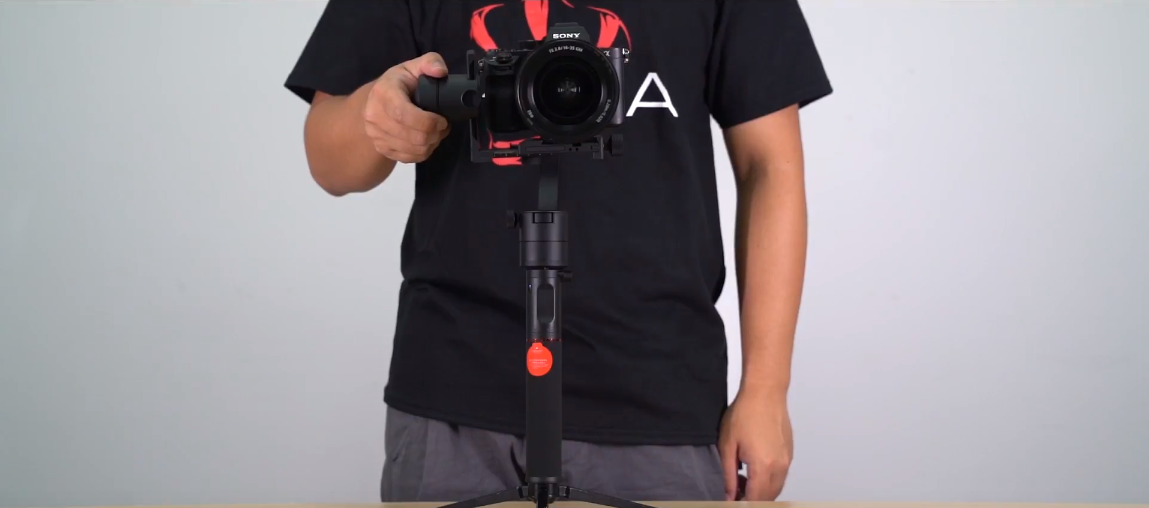

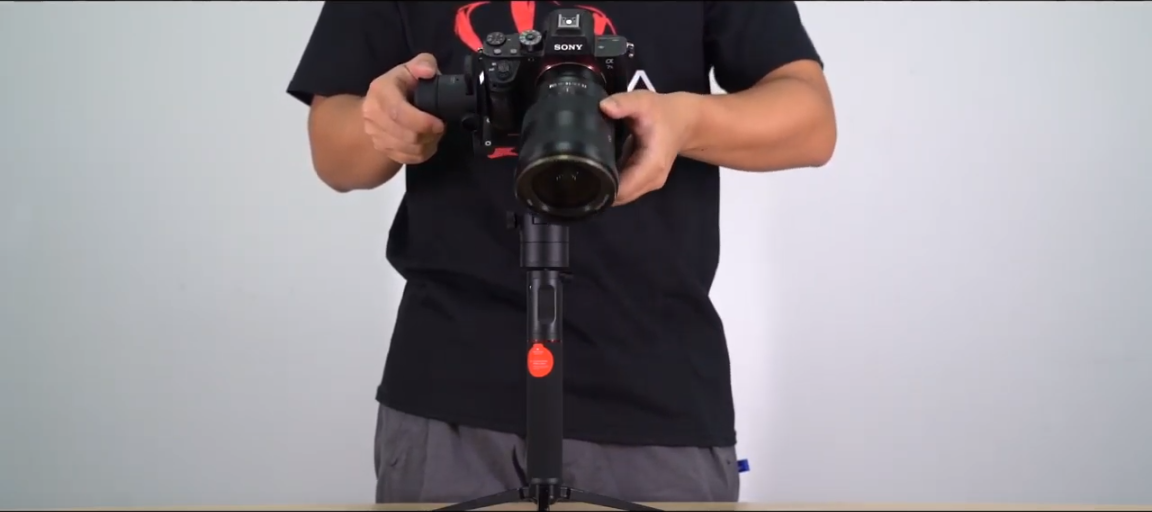

Hold the pitch motor with your right hand





Observe the camera’s tilt direction





If the camera is too-front heavy move the quick release plate backwards





If the camera is too-back heavy move the release plate forwards





Remember to tighten the screw after each adjustment





When the camera no longer tilts, it gets balanced

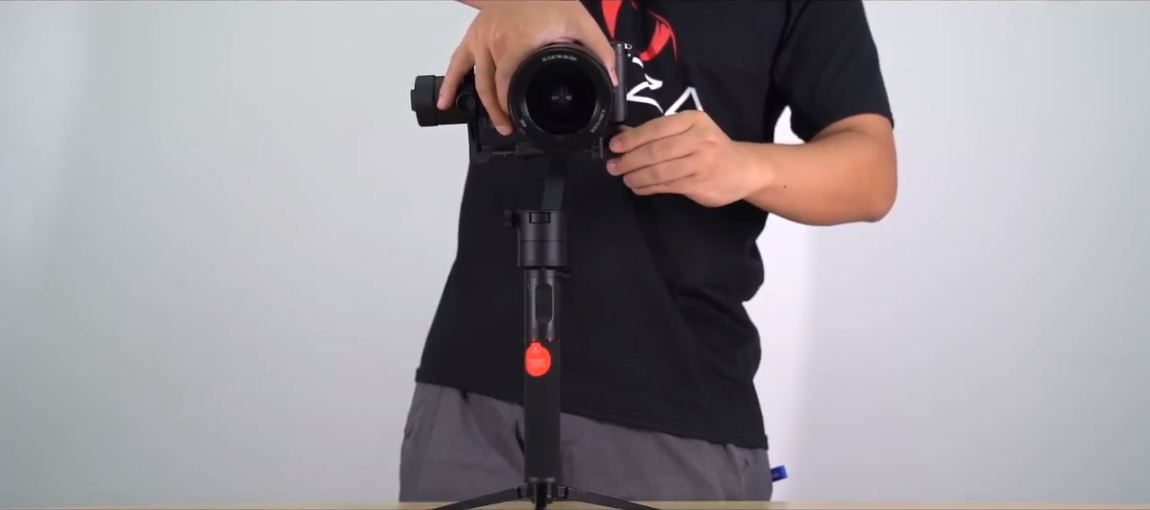

Pitch balance



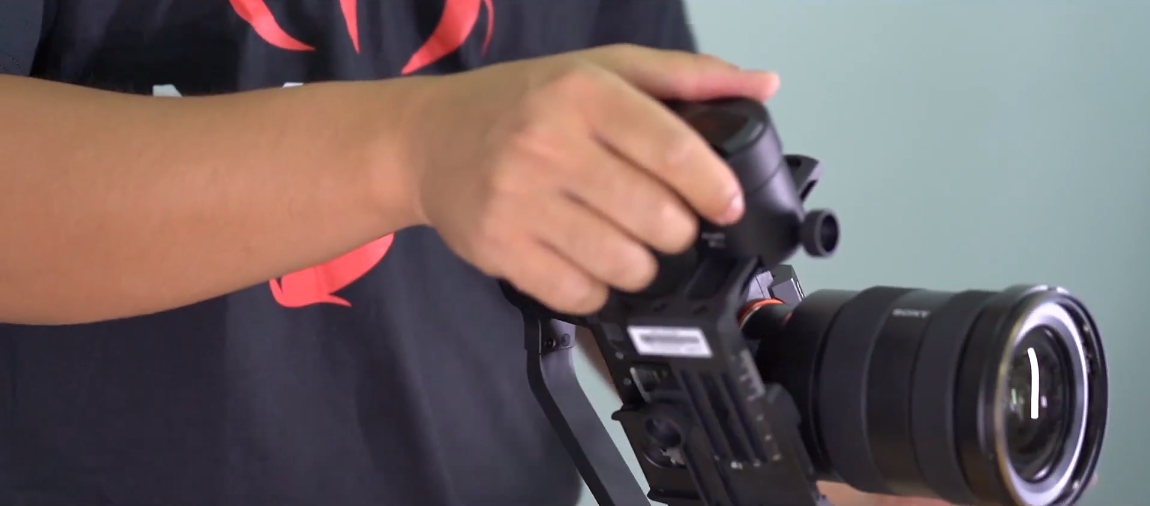

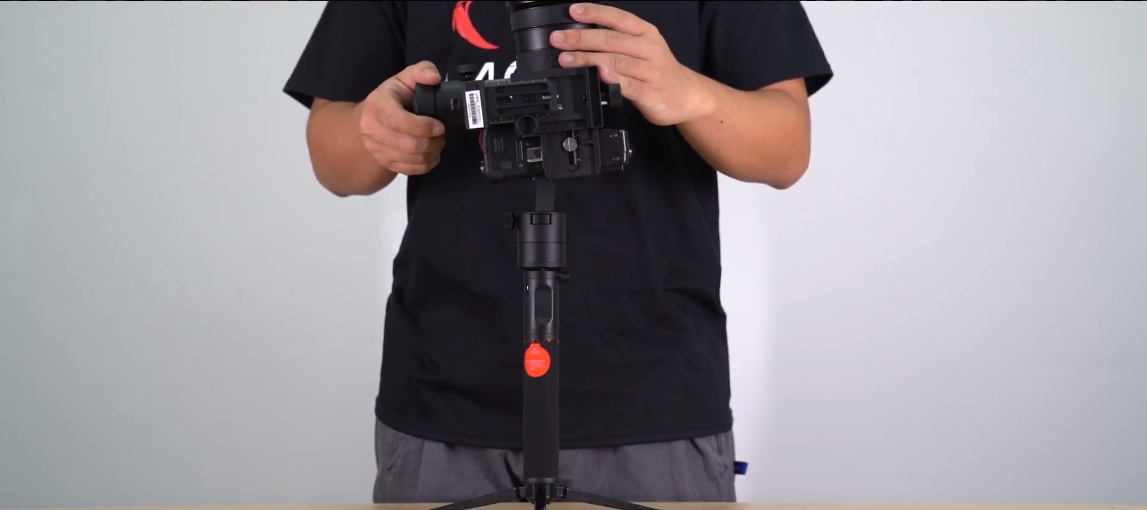

Hold the pitch motor with the right hand and make the camera lens vertically upward





Then release the camera to observe the tilt direction of the lens





If the camera tilts forwards slide the pitch arm backwards







If the camera tilts backwards slide the pitch arm forwards





Until the camera keeps still when the lens is vertically upwards





Roll balance



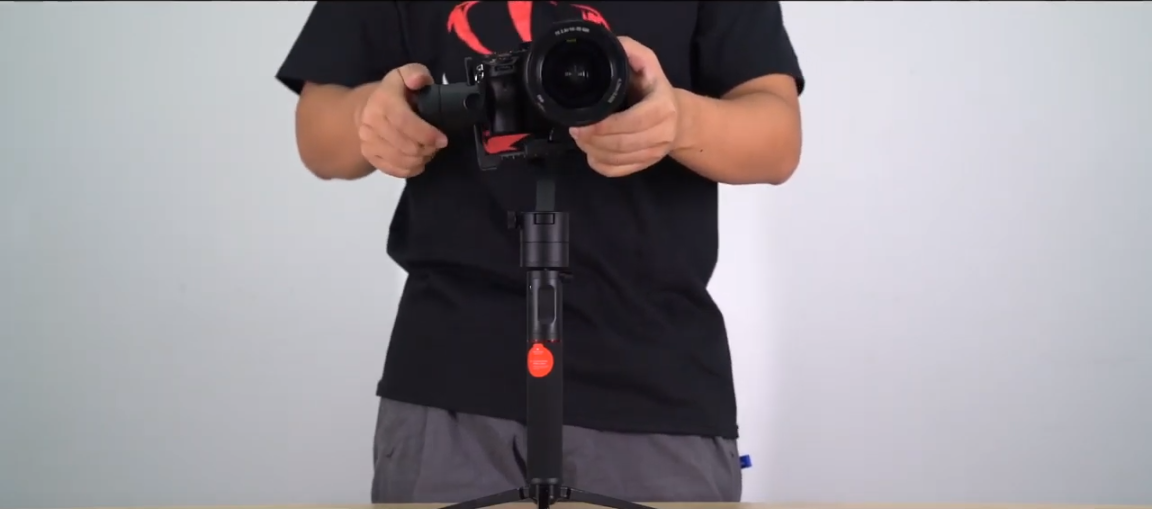

Hold the pitch motor and observe the roll arm’s tilt direction
If it tilts rightwards move the roll arm leftwards





If it tilts leftwards move the roll arm rightwards





Until it no longer tilts and keep still



Yaw balance

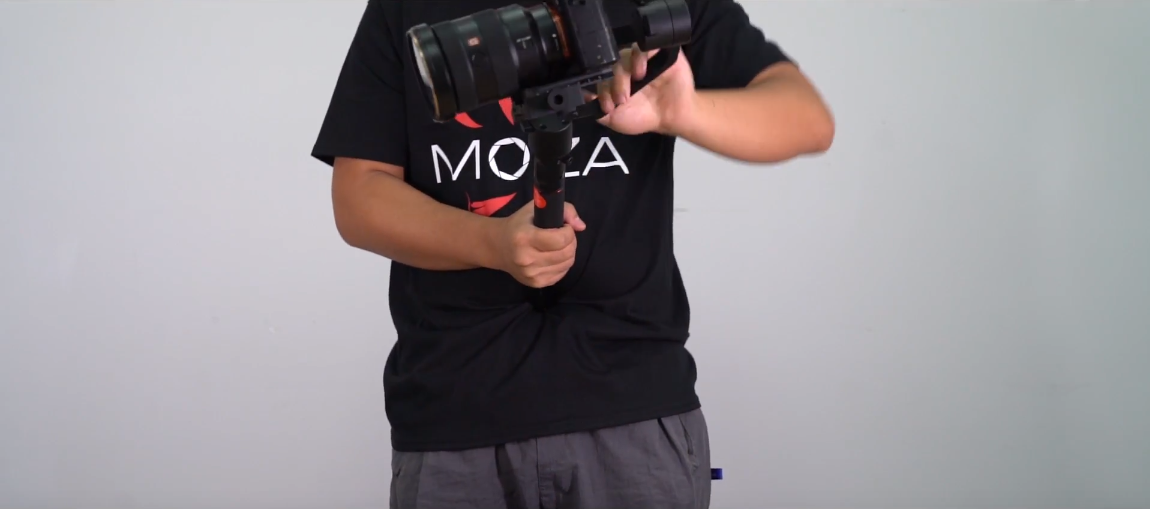

Hold the MOZA gimbal and tilt it forward 45°





Rotate the yaw axis to make the screw face the operator





Then observe the tilt direction of the gimbal



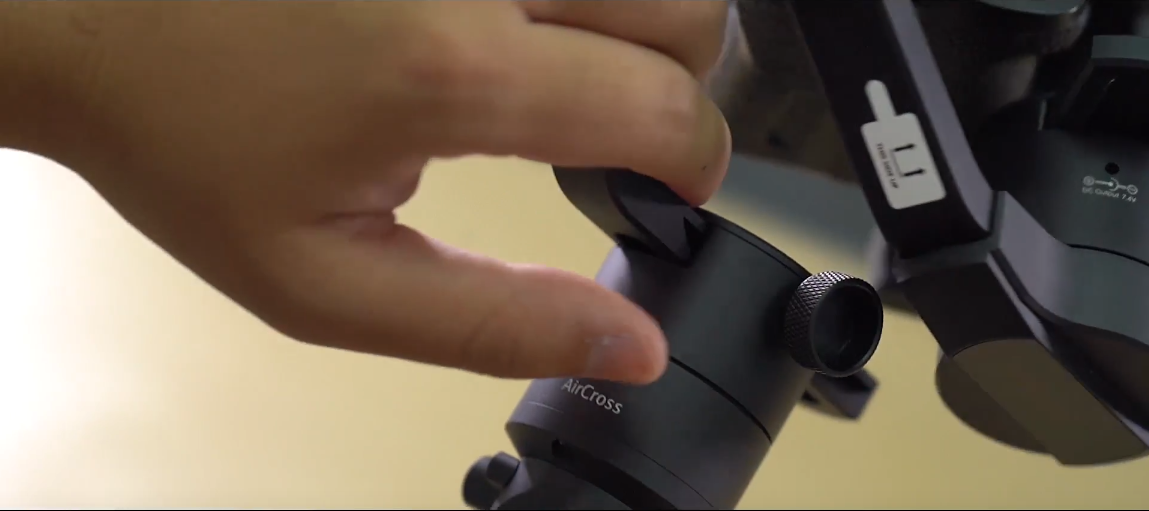

If it tilts rightwards, slide the yaw arm leftwards



If it tilts leftwards, slide the yaw arm rightwards



Until the gimbal no longer tilts and keep still
