MOZA Air 2 Basic Balance Adjustment

MOZA Air 2 Basic Balance Adjustment


Preparation

Put the MOZA Air 2 gimbal in the tripod legs and make sure the legs are tight. Open the legs so that the gimbal can stand on the flat surface.

Make sure the control panel is facing you and the trigger is facing outwards.

Open the battery hatch cover by pushing it downward and pulling it out.

Insert the batteries in the direction showed on the lower side.

When finished, close up the cover by the pointed tip into the hole, then the back will snap in.

Mount the camera

Please always leave the side motor on the right side of the gimbal (from your own point of view) and the gimbal back facing you.

Pull out the quick release plate, mount it onto the camera and screw tight the plate to the camera.

The hole marked in red is where the iFocus rod goes through to mount it on the camera.

Put the camera into the gimbal slot and pull the bar back to lock it into place. If you want to use a viewfinder, please unfold it before you start balancing the gimbal.


3 Axes Balancing

There are 3 axes balance. First we balance the tilt axis.

There is a small lock that you can use to secure the roll axis so it doesn’t move. Facing up the gimbal and release, if it drops forward, we need to pull the camera up; if it drops backwards, we need to push it up. Make adjustments until it stays, then secure it. The tilt axis is thus balanced.



Next step is to balance the roll axis. If the gimbal falls to one side, push bar to the opposite side. Once balanced, look it into place. Now our three points are now balanced. When you tilt in certain direction, the camera will stays its position.



Last part is to balance the Pan Axis. The manual suggests holding is horizontally. However, if the gimbal and camera are too heavy for you, here is a better way to do it.

Put the gimbal on a flat surface and tilt it to one side. If the gimbal moves, then it is unbalanced. Adjust the bar to balance until the gimbal stays, then it is balanced.




Tutorial

How to Set up MOZA Air 2

1. To get it running, the two most important items you will need: the charged batteries & quick release plate.



2. Press down the cover release and lift up the battery. (You will need to hold the grip tight to make it easier)





3. Install the back column batteries positive side up and front column batteries positive side down.



We will take BMPCC 4K as an example:





4. Use an extra quick release plate to adjust the camera over to the left. (For the large size of the camera)



5. The quick release plate is mounted to the memory quick release plate.



6. Attach the camera to MOZA Air 2.





7. Attach the iFocus to the follow focus support rod.





8. Adjust the iFocus so its teeth lineup in the lens gear.





9. Set the camera forward and backward to adjust the balance of the pitch axis.





10. Now position the camera with lens pointed up and in this position we will be able to adjust the height of the camera center of gravity.





11. Connect CAN cable to iFocus then to Multi CAN port on MOZA Air 2





12. Adjust the roll arm in or out until roll axis does not rise or fall





13. The last adjustment is the yaw(pan) axis. Hold the gimbal horizontal and take note of roll motor position.



14. If roll motor position is high then yaw(pan) arm needs to be pulled out

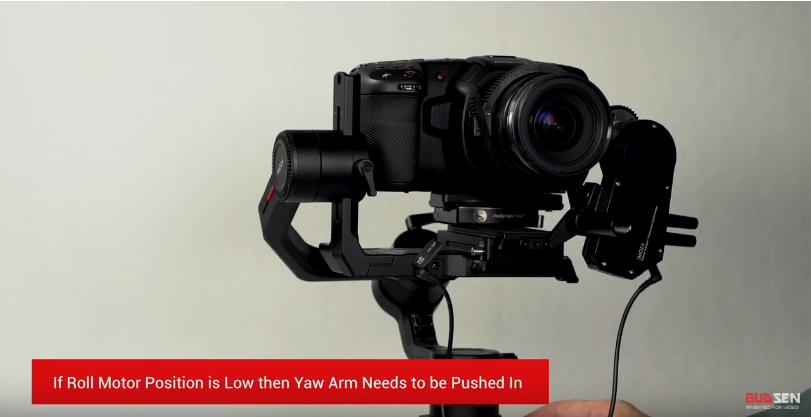

15. If roll motor position is low then yaw(pan) arm needs to be pushed in





Attaching accessories



Balance check





Camera connect





Autotune

Tutorial

How to use different filming modes of MOZA Air 2



Let's get to know more about MOZA Air 2 and how to use different modes on it.

IFocus

Ifocus can be used to control lens zoom.

You can learn how to set start and end points below.



11 different filming modes





Inception mode



Inception mode is an exceptional way to add a dramatic twist of camera movement.



Double press speed button to enter inception mode. Then press the joy stick to the left or right to rotate the camera. Also the smart wheel can be used to control auto rotation while in inception mode.



By rotating the smart wheel you can change the rotation speed.

Pull the smart trigger twice to exit inception mode.



Smart trigger

The smart trigger can perform a few different filming modes.

If the smart trigger is pulled, it will hold the position of the gimbal. To resume gimbal movement, release the trigger.



Sport mode

To select sport mode, press FN button. Pan will display the letter Q to indicate sport gear mode.

Smart trigger in sport mode will speed up motor response times.



FPV mode

Triple press smart trigger button to have the gimbal rotate 180°to face the operator. FPV mode is great for vblogging or catching a selfie video.

Press the smart trigger two times to exit the FPV mode.

Rotating smart wheel to adjust motors response to movement



Four most common modes

L indicates the axis is locked.

F indicates the axis will follow.

Push joystick in one time to switch pan axis from follow to lock.

Push joystick in two times to switch roll axis from follow to lock.

Push joystick in three times to switch tilt axis from follow to lock.



All lock mode

In which all axes are lock and you can use the joystick to position.





Pan follow mode

Pan follow mode is great for panning the camera.





Tilt follow mode

Tilt follow mode is used to tilt the camera.





Tilt & pan follow mode

Tilt&pan follow mode is a great choice when the camera needs to explore the scenery or track the difficult subject.



Unique Camera Modes

Roll follow mode





Roll&pan follow mode





Tilt&roll follow mode





All follow mode

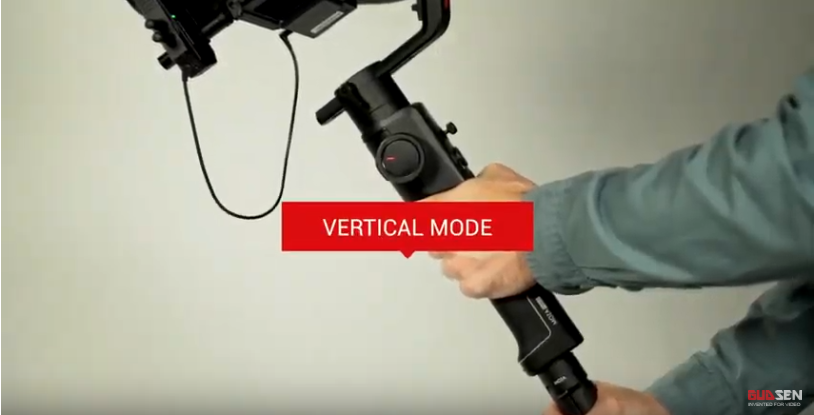

Vertical mode

Most users will typically hold the gimbal in this position for the majority of shots.





Flashlight mode

Flashlight mode has a gimbal position in which the gimbal can use inception mode.





Underslung mode

Its great for capture the shots from low angles and especially useful at canceling out rise/fall of walking. Use a mini-tripod as hand extension for jib shot and help spread out weight.



Tutorial

Overview of the MOZA Master App



Open the MOZA master App. Press connect and select MOZA Air2.



The App displays the gimbals battery life, motor output and more.


Tap gimbal settings to access:















Tap camera settings to access:





Remote control





Timelapse




Tripod mode

 This mode will suppress steady drift which is only used when the gimbal is placed on a stationary tripod.







Upgrade

Hold joystick and then press power button. Open the MOZA App, confirm that you want to do the upgrade.



How To Shoot A Timelapse Video With MOZA Air 2



How To Shoot A Timelapse Video With MOZA Air 2


Do you ever wonder just like me how on earth these wonderful timelapse videos are shot with MOZA Air 2 gimbal? If you do, then you have come to the right place, because in this article I will show you how to unlock this cool skill with detailed step by step guide. Hopefully, you could shoot a fabulous timelapse video yourself as well, and if possible, send it our way to share with us. You are more than welcome.


Tools You Should Have

Camera, MOZA Air 2 gimbal, tripod(if needed), camera control cable.

Five Steps To Shoot A Timelapse Video

1. Connect the camera to the MOZA Air 2 gimbal with camera control cable.

2. If you shoot a street scene, then you may need to mount a filter on the lens in order to blur the cars.

3. Power on the MOZA Air 2 to do the gimbal settings. First select the camera mode in Camera set, choosing the same brand with your camera brand, and in my case it is Sony.

The second useful setting is tripod mode. Usually, you should accurately calibrate the gimbal,but when you turn on the the tripod mode, everything will work fine.

4. Open the MOZA Master APP and connect the gimbal to set the timelapse parameters. Select “Creative Video”, then “Motionlapse”.

Here we will set a timelapse shoot. With MOZA Air 2 you can do multi-frame movement, which means you can choose more than two camera positions within one timelapse shoot. Let’s make a shoot in which we follow the road.


To add a keyframe, tap the button marked in red and this keyframe will appear on the screen, then you could add other keyframes.

 In this shoot we have 5 keyframes.

After that, we set other parameters like shutter interval and shooting duration.

5. When all parameters are set, we could preview this shoot to see whether the camera moves in the same track as planned.

Besides, we could go to each camera position to fine-tune it by tapping that position showed on your phone screen and moving it, and the gimbal will also move with it.


 If all thing is ok, tap the Start button to start the timelapse shooting.


Sometimes Less is More


Of course, you don’t always need to use more than two keyframes, sometimes simplicity is the best and you could also shoot wonderful videos with just two keyframes.

Hopefully, this article could help you master this very cool timelapse shooting skill.


 MOZA official store: https://store.gudsen.com/



Tutorial

MOZA Air 2 Firmware Upgrade via MOZA Master App


Step-by-step guide

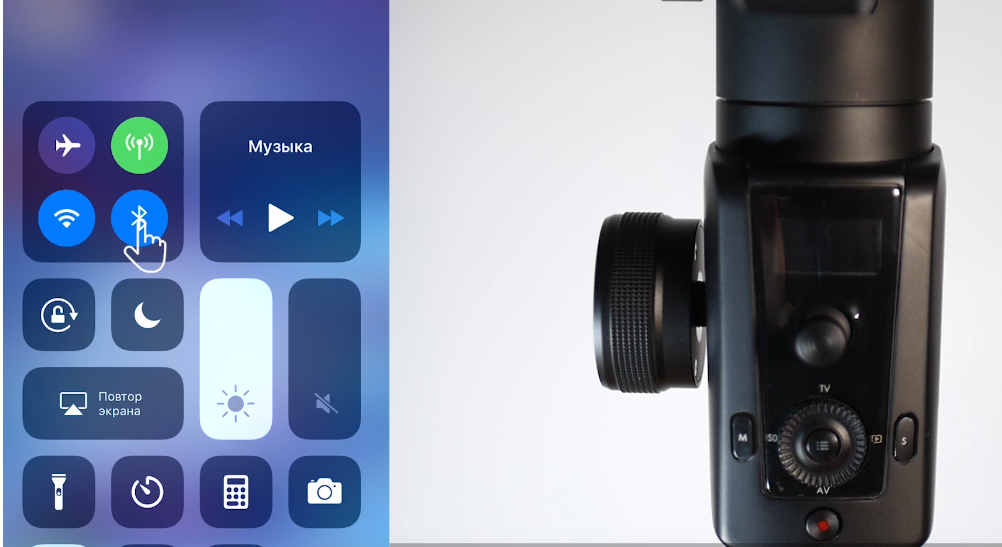

1.Turn off the gimbal and enable Bluetooth function on your phone.




2. Launch MOZA Master App; Turn on Boot mode. Hold joystick and press power button.




3. Select “confirm” to upgrade the firmware.





4. Select “upgrade” to start the upgrade process. This step will take a while. Please be patient.




5.When the percentage turns 100%, the upgrade is complete. Then select “confirm”. Please restart the device after that.




Tutorial

MOZA Air 2 Firmware Upgrade via Computer


For the first time using and updating MOZA Air 2, please use your computer.

Step-by-step guide


1. Go to Gudsen.com website.




2.

 Go to MOZA Air 2 download page ,download file marked in red.




3.Open the fold where this file is downloaded and unzip the file.




4. Open the unzipped fold and Install the driver.



Click the “agree” , "agree" and then click “finish” to complete the installation.


5.Turn off the gimabl and connect Air 2 via USB-C cable to PC.




6. Open MOZA Master software.




Here is the software interface.




7. Turn on Boot mode. Hold joystick and press power button and connect to Air 2.





8. Press upgrade button. This step will last a while, please be patient.



9. When the percentage turns 100%, the upgrade is complete. Please restart the device.
